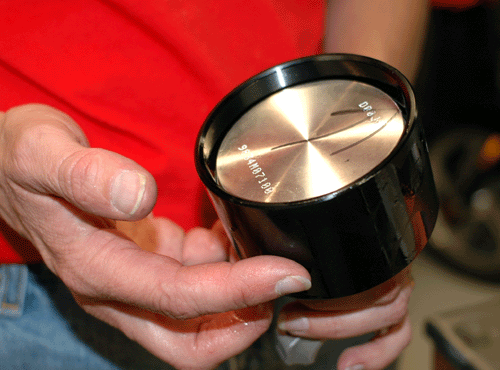

After you assemble and install the piston rings, sink the piston into the installer supplied in the tool kit. ***warning-Please take the time to read and understand the ring installation instructions supplied by Wiseco with the piston. |
|
![]() |

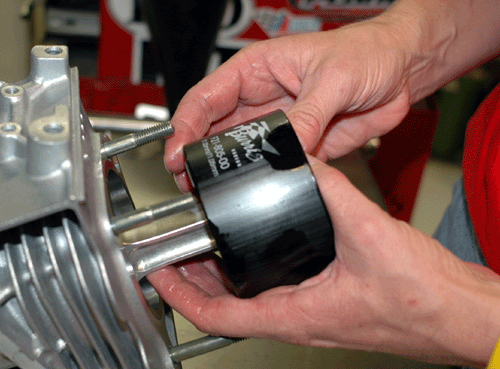

After seating the piston/rod/installer against the block deck and generously lubing your cylinder bore with your favorite assembly lube(back away from Cisco for this operation),the piston should slip happily into the bore. | |
![]() |

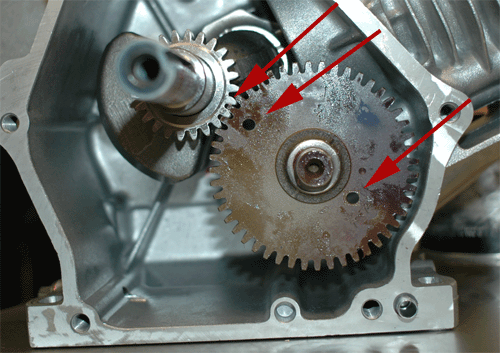

Take special care to line up the timing mark on the crankshaft with the holes on the cam gear. | |
![]() |

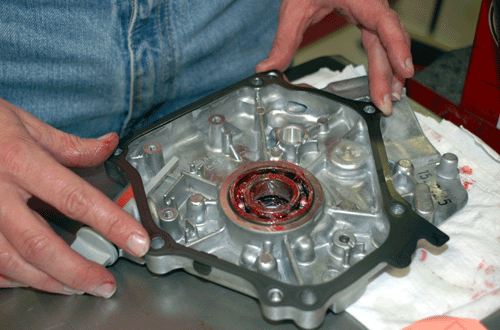

Grease up the main bearing and seal. Fit the gasket in please. (Have you EVER seen a multi-layer NASA spec gasket in karting?) | |
![]() |

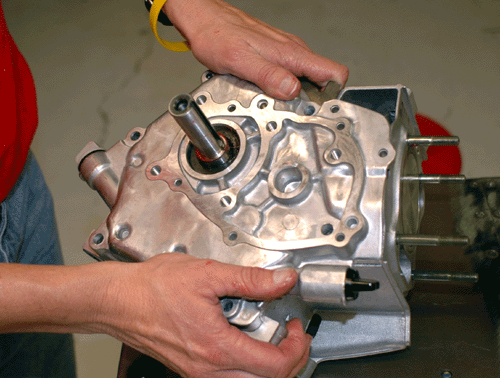

Gently fit the side cover to the block and insert the side cover screws. Torque to the spec supplied in the assembly guide and viola! you have a lump. | |
