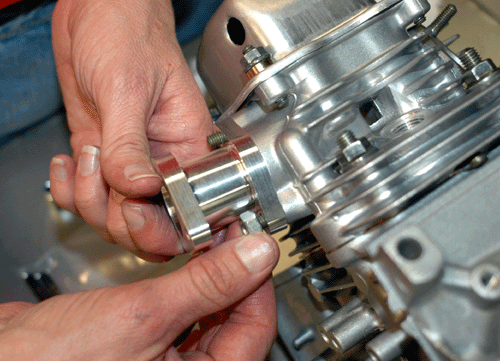

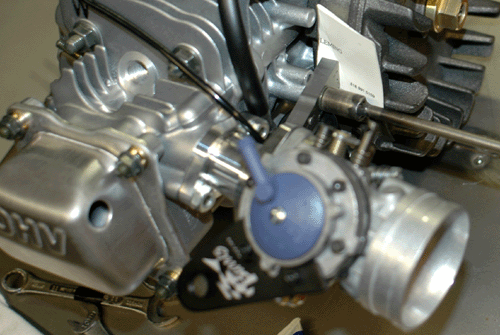

Use the gaskets and assemble the intake manifold. Use blue loctite on the screws or you will create a random lean-out event when you least expect it. |
|
|
|
|
|

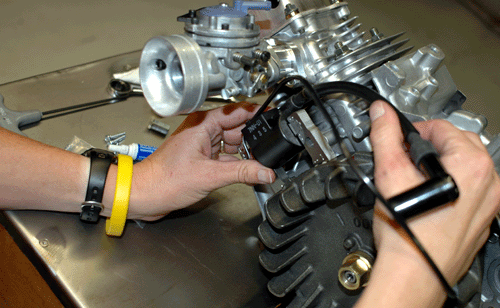

Install the ignition coil. |
|
|
|
|
|

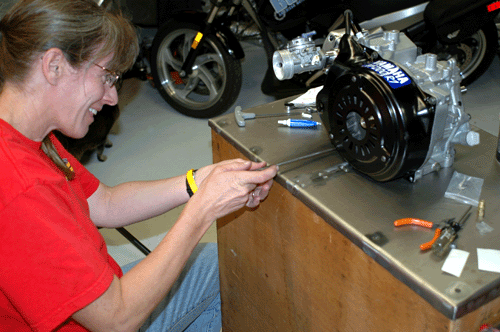

Kathy used on old trick. A business card, folded in half is pretty darn close to .020". Use the card and the pull of the magnet to set your coil gap. |
|
|
|
|
|
Kathy places the fan shroud on the motor and get ready to celebrate. |
|
|
|
|
|
Kurt Burris strongly recommends the use of a filter cover. His testing indicated MUCH longer engine life with the Outerwear cover in place over the filter. |
|
|
|
|
|
After assembling the gorgeous RLV pipe(which came in the kit), Kathy can now turn her attention to converting her TopKart Viper from shifter mode to YF200 mode. |
|
|
|
|
|
|
|
|
|
|
|
|
